2024 Open Range Conventional | 26BHS
2024 Open Range Conventional

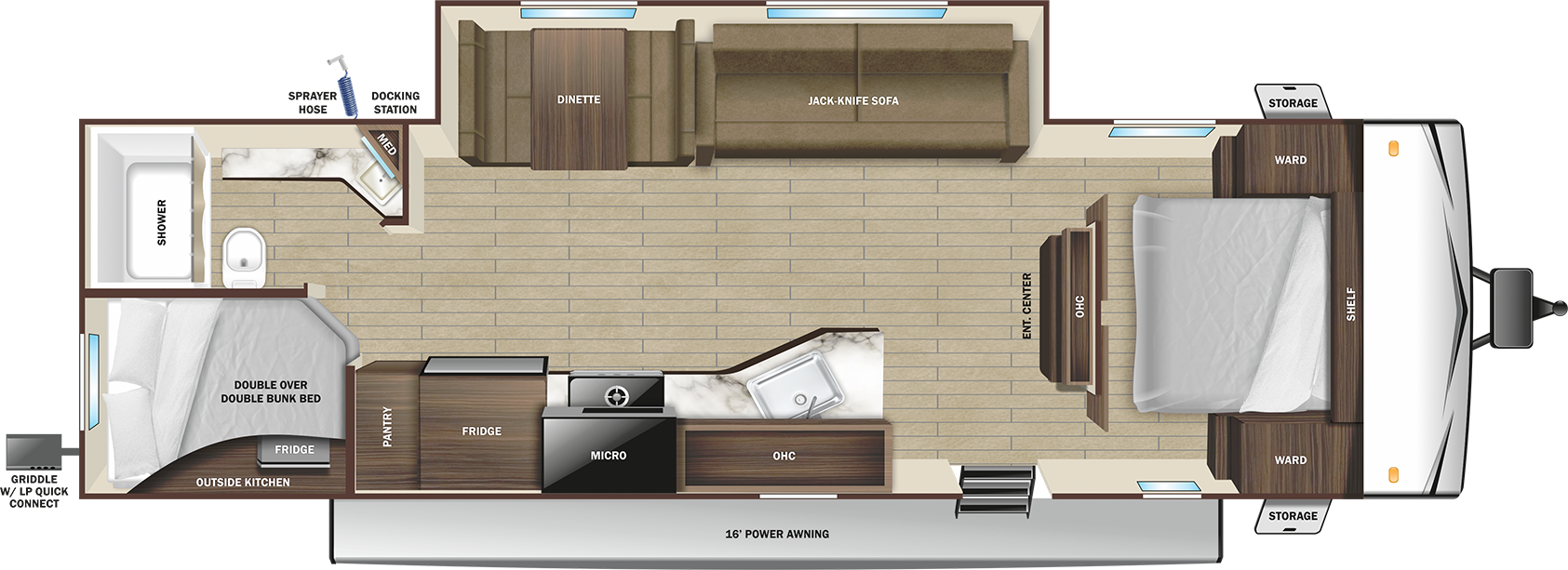

See Floorplan with
an Option Added:
See Floorplan with
Specifications
Weights
| Dry Hitch Weight (lbs) | 760 |
| Unloaded Vehicle Weight (lbs) | 5,810 |
| Cargo Carrying Capacity (lbs) | 1,690 |
| Gross Vehicle Weight Rating (lbs) | 7,500 |
Measurements
| Exterior Length (overall) | 30' 8" |
| Exterior Height | 10' 5" |
| Exterior Height (with A/C) | 11' 1" |
| Exterior Width | 8' 0" |
| Exterior Width (with slides out) | 11' 0" |
| Interior Height (main) | 6' 9" |
| Awning Length | 16' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 42.0 |
| Gray Water Capacity (gals) | 32.5 |
| Black Tank Capacity (gals) | 32.5 |
| Propane Unit (lbs) | 60 |
Miscellaneous
| Sleeps | up to 10 |
| Water Heater | 6 |
| # of outside storage compartments | 2 |
| Furnace BTU | 30000 |
| Tire Size | ST205/75R15'D' |
