2026 Range Lite | NEW 220DBM

2026 Range Lite

Saved Print
Request Quote Build & Price Specifications

See Floorplan with
an Option Added:

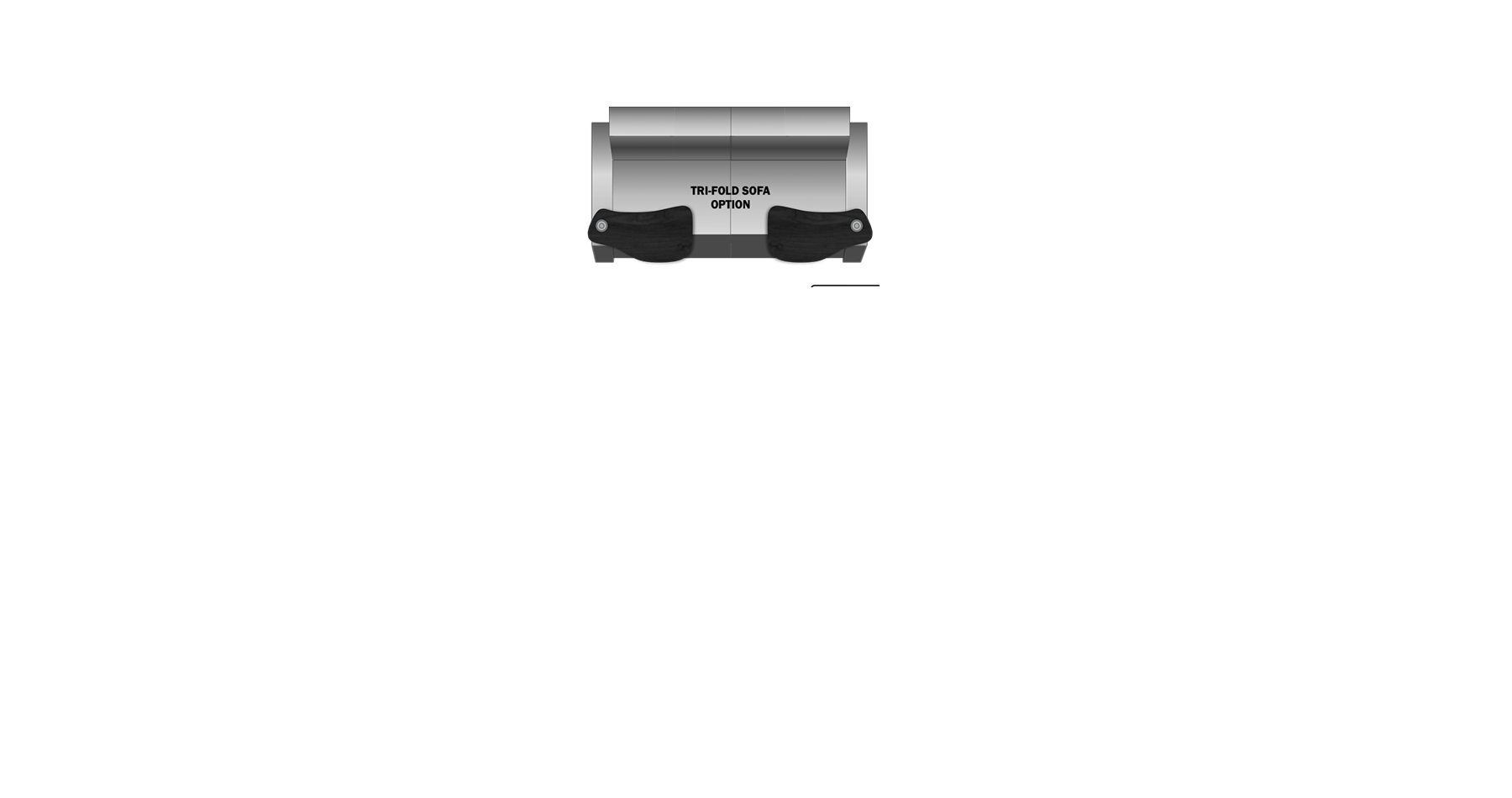

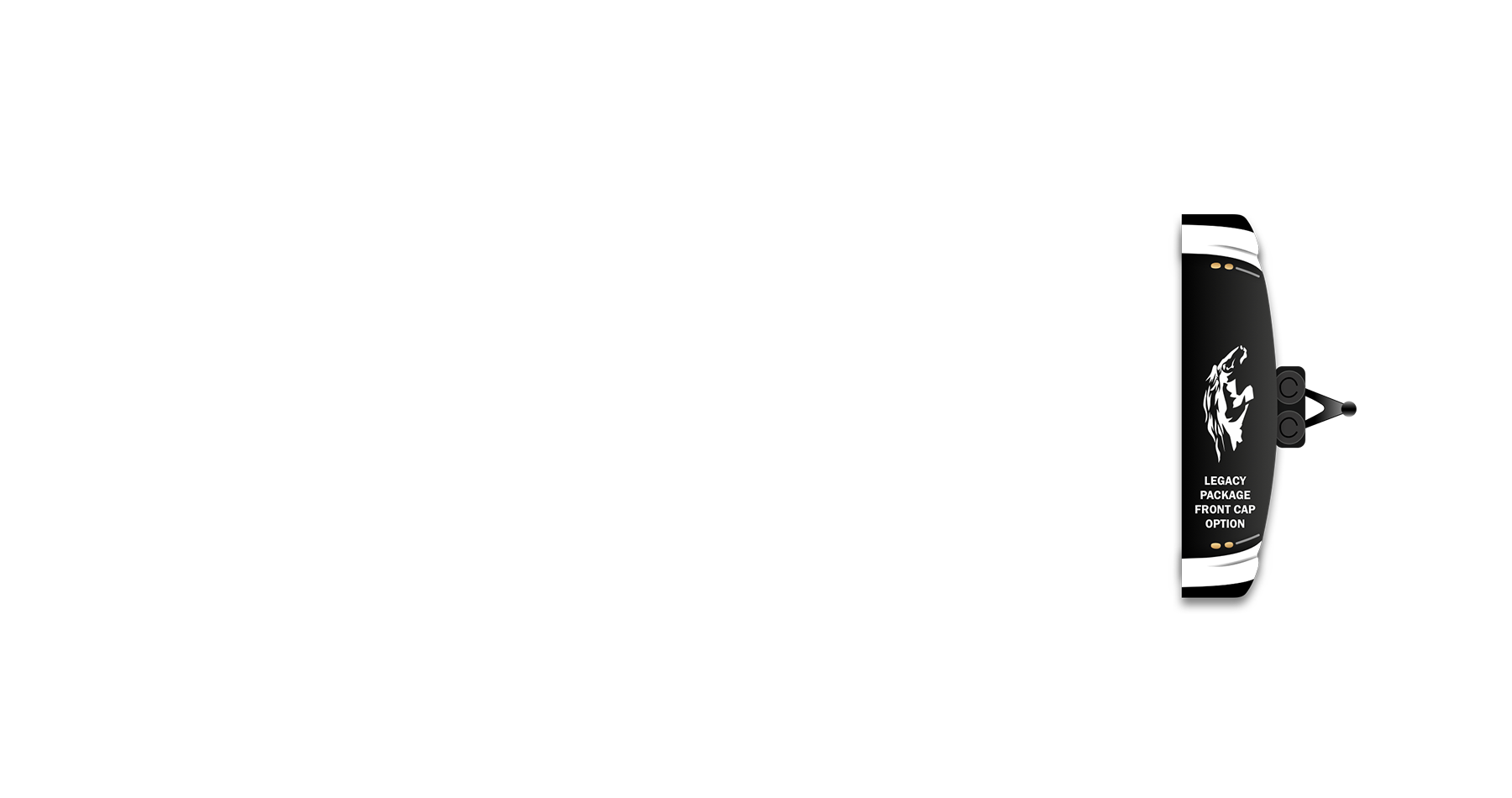

220DBM Tri-Fold Sofa Theater Seat Legacy Package: Front Cap

See Floorplan with an Option Added:

Interior Design

COASTAL LINEN

COASTAL LINEN

Specifications

Weights
Dry Hitch Weight (lbs)655
Unloaded Vehicle Weight (lbs)5,550
Cargo Carrying Capacity (lbs)1,445
Gross Vehicle Weight Rating (lbs)6,995
Measurements
Exterior Length (overall)26' 8"
Exterior Height9' 11"
Exterior Height (with A/C)10' 8"
Exterior Width8' 0"
Exterior Width (with slides out)10' 11"
Interior Height (main)6' 6"
Awning Length19' 0"
Tank Capacities
Fresh Water Capacity (gals)55.0
Gray Water Capacity (gals)30.5
Black Tank Capacity (gals)30.5
Miscellaneous
Sleepsup to 8
Water HeaterTankless
# of outside storage compartments2
Furnace BTU 35000
Tire SizeST205/75R14'D'

Build and price your Highland Ridge RV

Choose your customizations below and receive a price estimate.

Options

Canadian Standards $210
Customer Convenience Package $6,000
Lite Package $3,750
Legacy Package $1,943
Xtend Solar II Package $1,193
15,000 BTU A/C $300
30lb. LP Gas Bottle $113
Heated Tank Pads $413
2" Rear Reciever $188

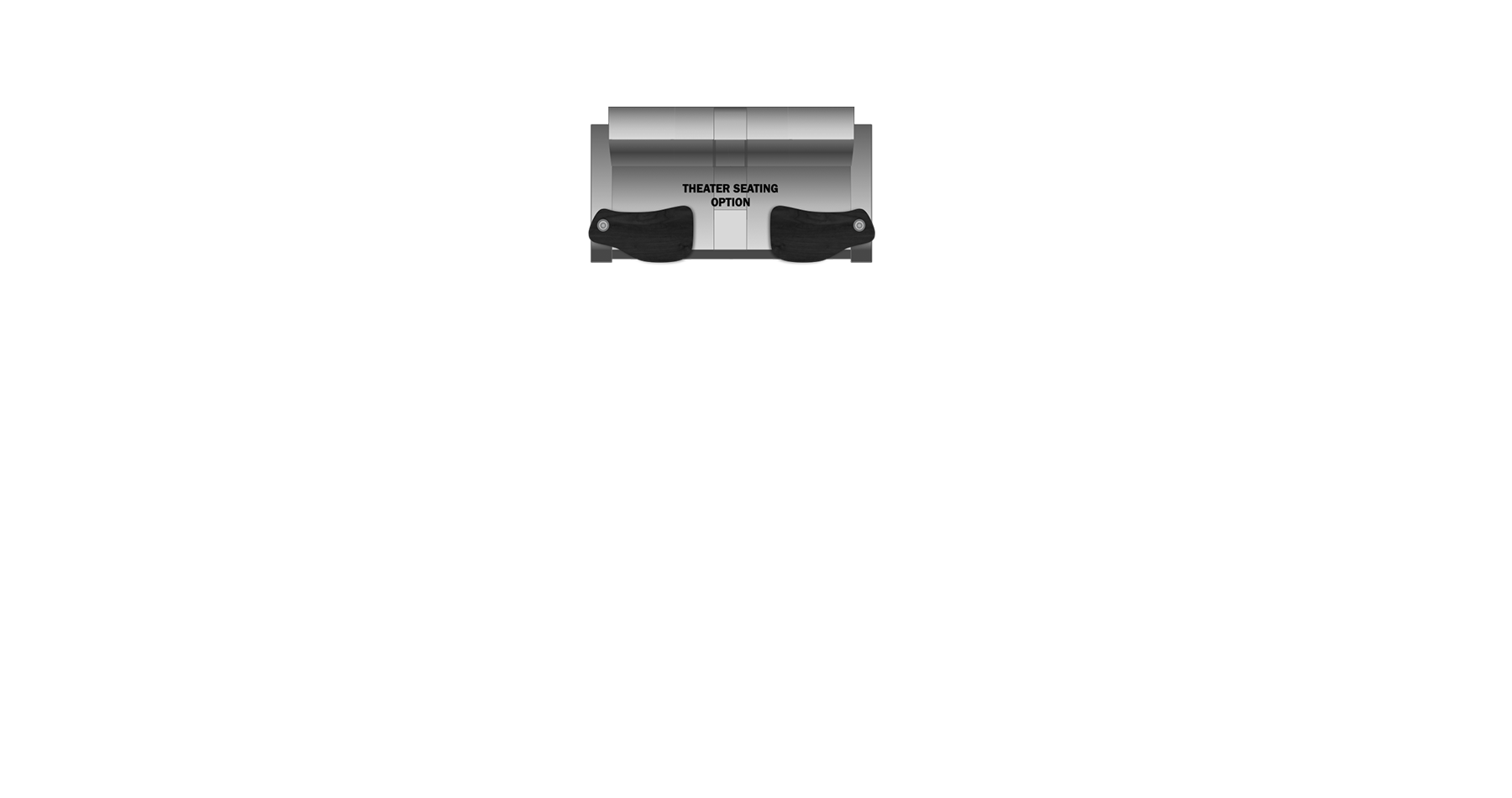

Theater Seating with Table Trays $893

$41,318 MSRP*

*MSRP shown in USD. Doesn’t include freight and dealer prep charges

Build and Price
Range Lite

2026 Range Lite

Starting at $38,903

Designed for both comfort and adventure, the Range Lite Travel Trailer is an ideal choice for couples or families. Every model comes equipped with the Xtend Solar 1 Package, featuring a 200-watt solar panel and 30-amp controller, giving you the power to keep the lights and refrigerator running off-grid. Inside, you’ll find a fully equipped kitchen with a 12V refrigerator and freezer, a 3-burner range with a 17" oven, and a flush-mount glass cover that adds valuable counter space when not in use. New for 2026, an on-demand tankless water heater delivers endless hot water at the campsite. With eight versatile floorplans to choose from, the Range Lite Travel Trailer series makes it easy to find the perfect fit for your next adventure

Learn More

Standard Features and Options

See All

Similar Floorplans

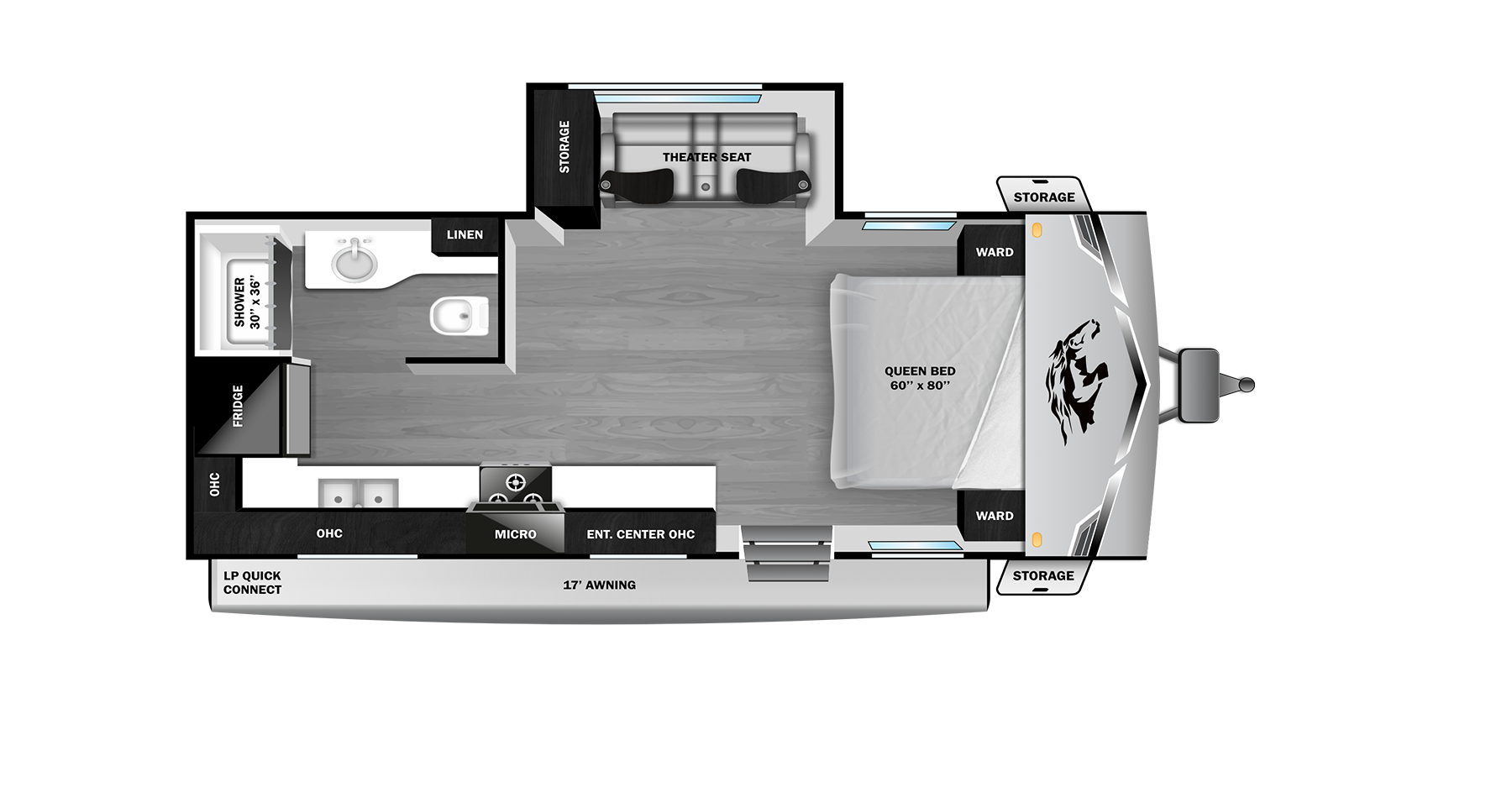

21RBS
