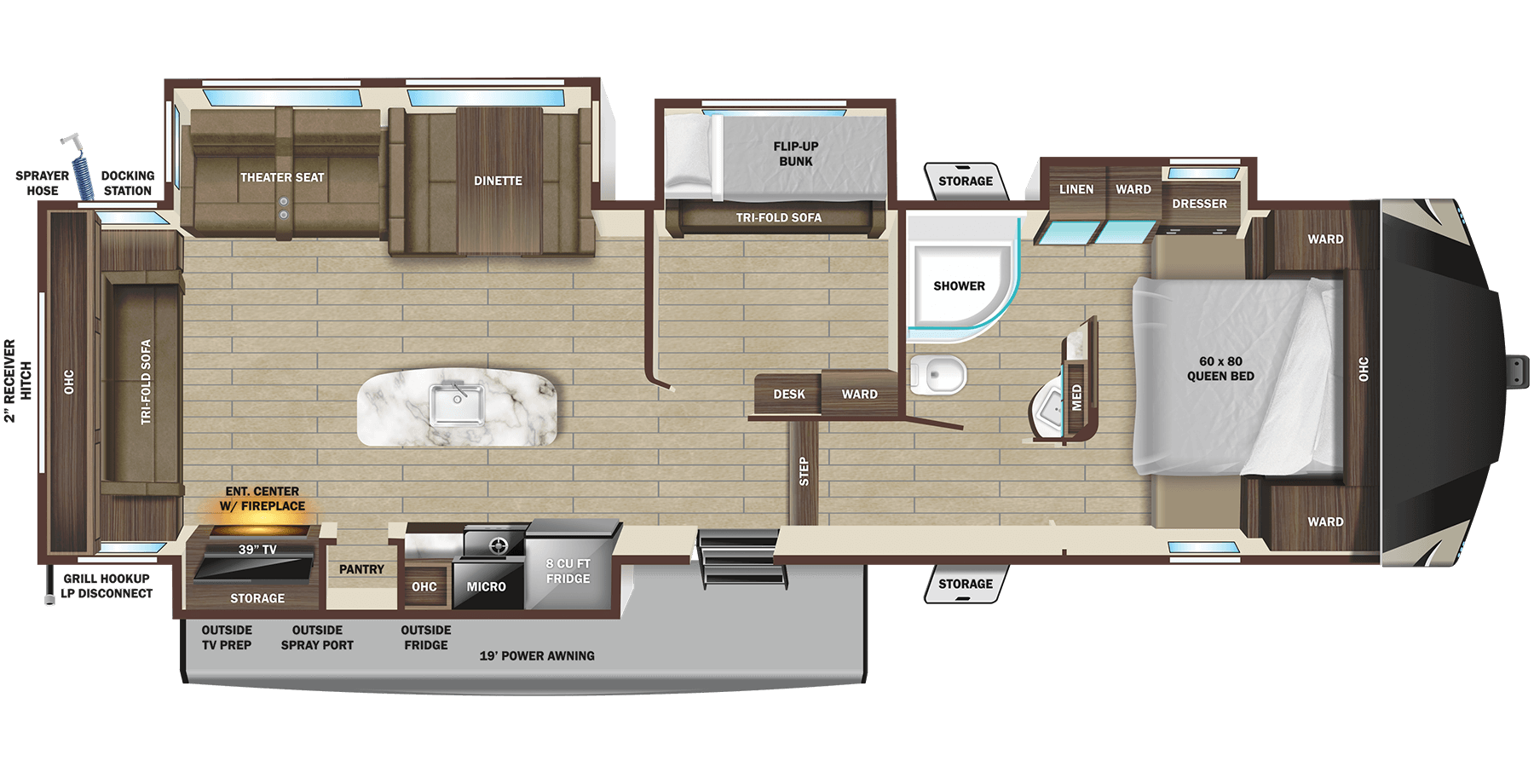

See Floorplan with
Interior Design
Cascade Ivory
Specifications
Weights
Dry Hitch Weight (lbs) | 1,610 |
Unloaded Vehicle Weight (lbs) | 9,565 |
Cargo Carrying Capacity (lbs) | 1,935 |
Gross Vehicle Weight Rating (lbs) | 11,500 |
Measurements
Exterior Length (overall) | 37' 11" |
Exterior Length (pin to bumper) | 37' 3" |
Exterior Height (with A/C) | 12' 6" |
Exterior Width | 8' 1" |
Exterior Width (with slides out) | 13' 0" |
Interior Height (main) | 7' 10" |
Interior Height (upper deck) | 6' 10" |
Awning Length | 19' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 45.0 |
Gray Water Capacity (gals) | 58.0 |
Black Tank Capacity (gals) | 29.0 |
Propane Unit (lbs) | 60 |
Miscellaneous
Sleeps | up to 8 |
Water Heater | 6 |
Tire Size | 15" |
2021 Specs Shown
