2022 Mesa Ridge XLT | 354MBH
2022 Mesa Ridge XLT
Previous model years are dealer stock only.

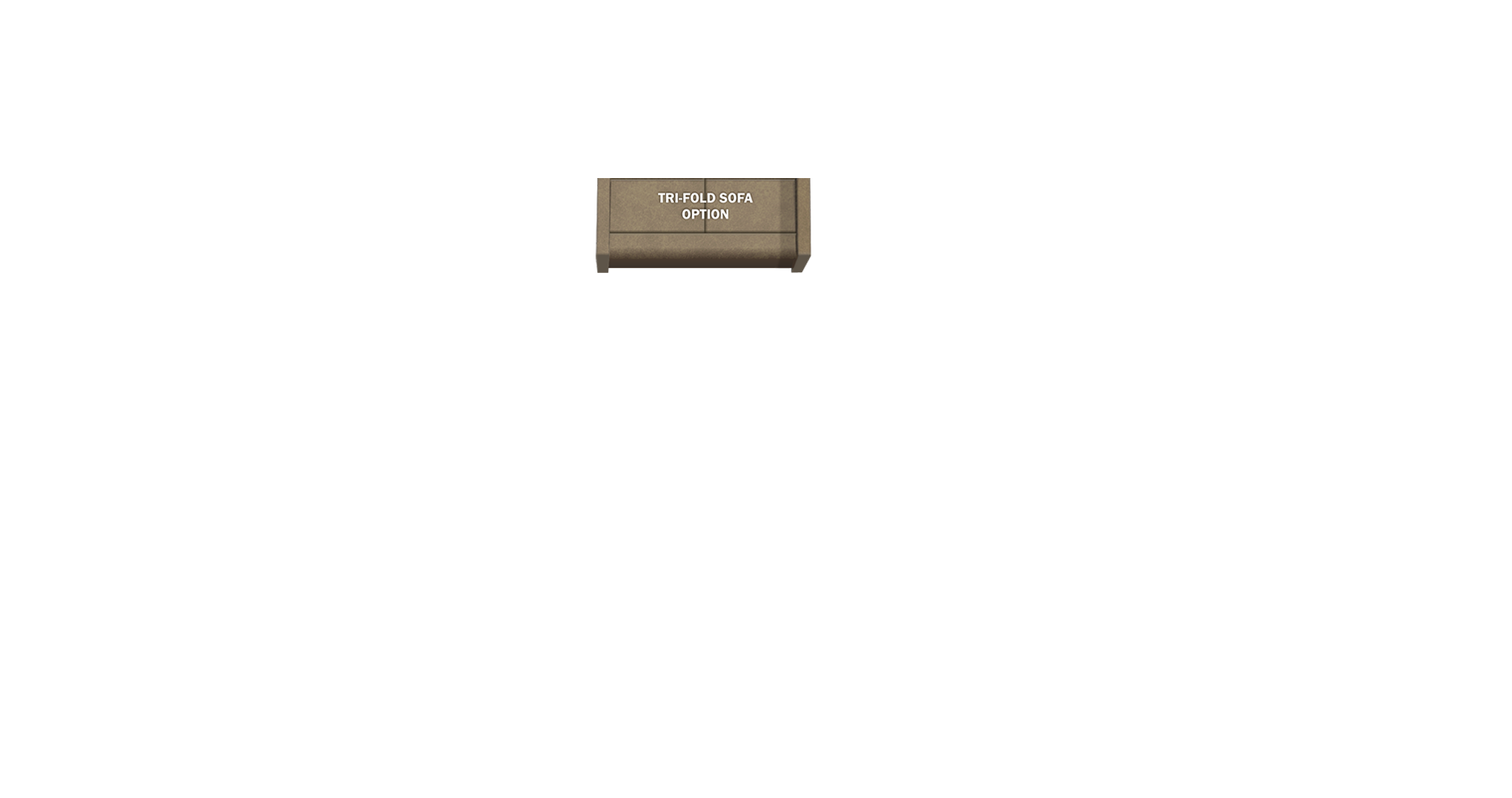

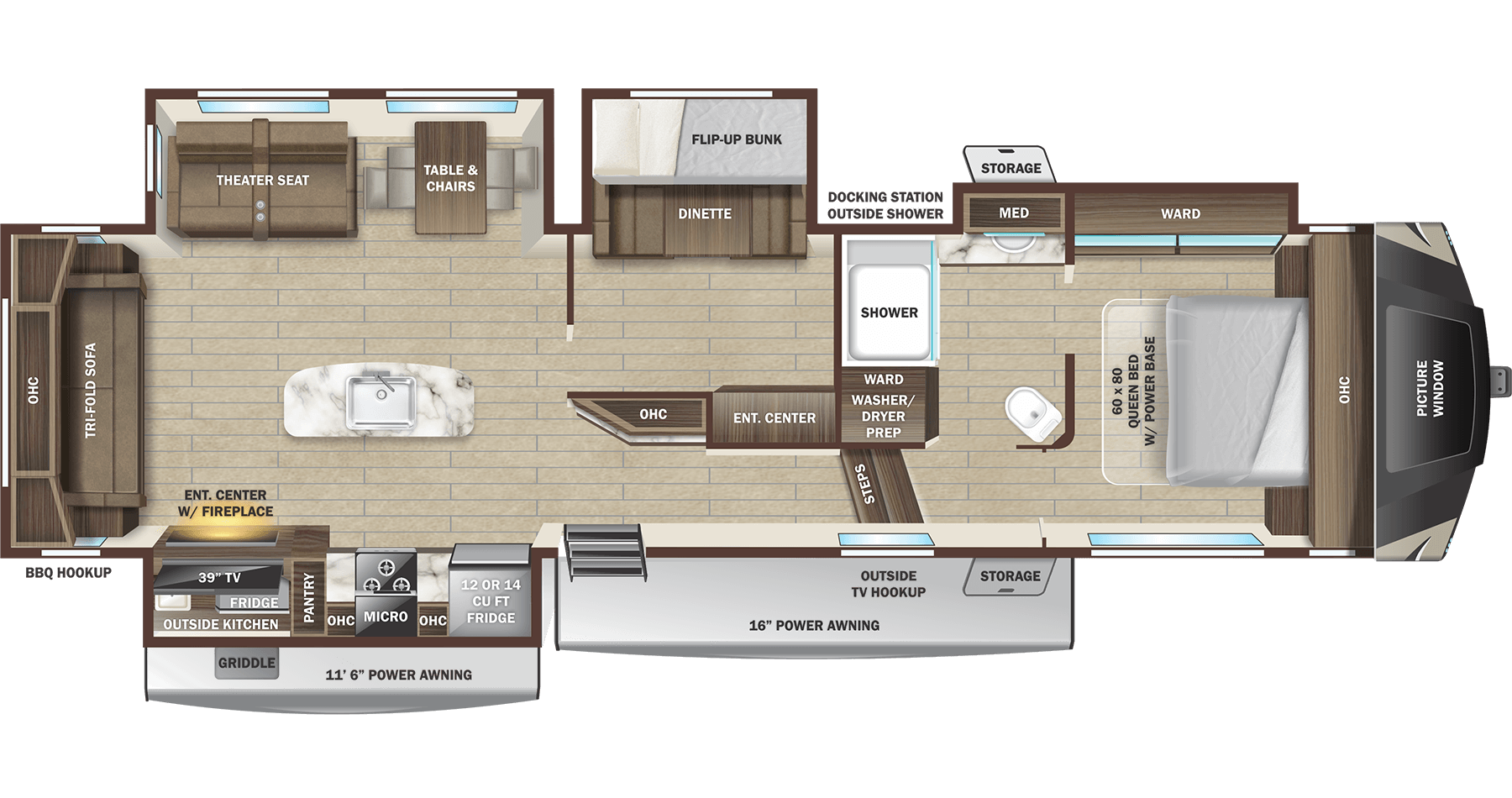

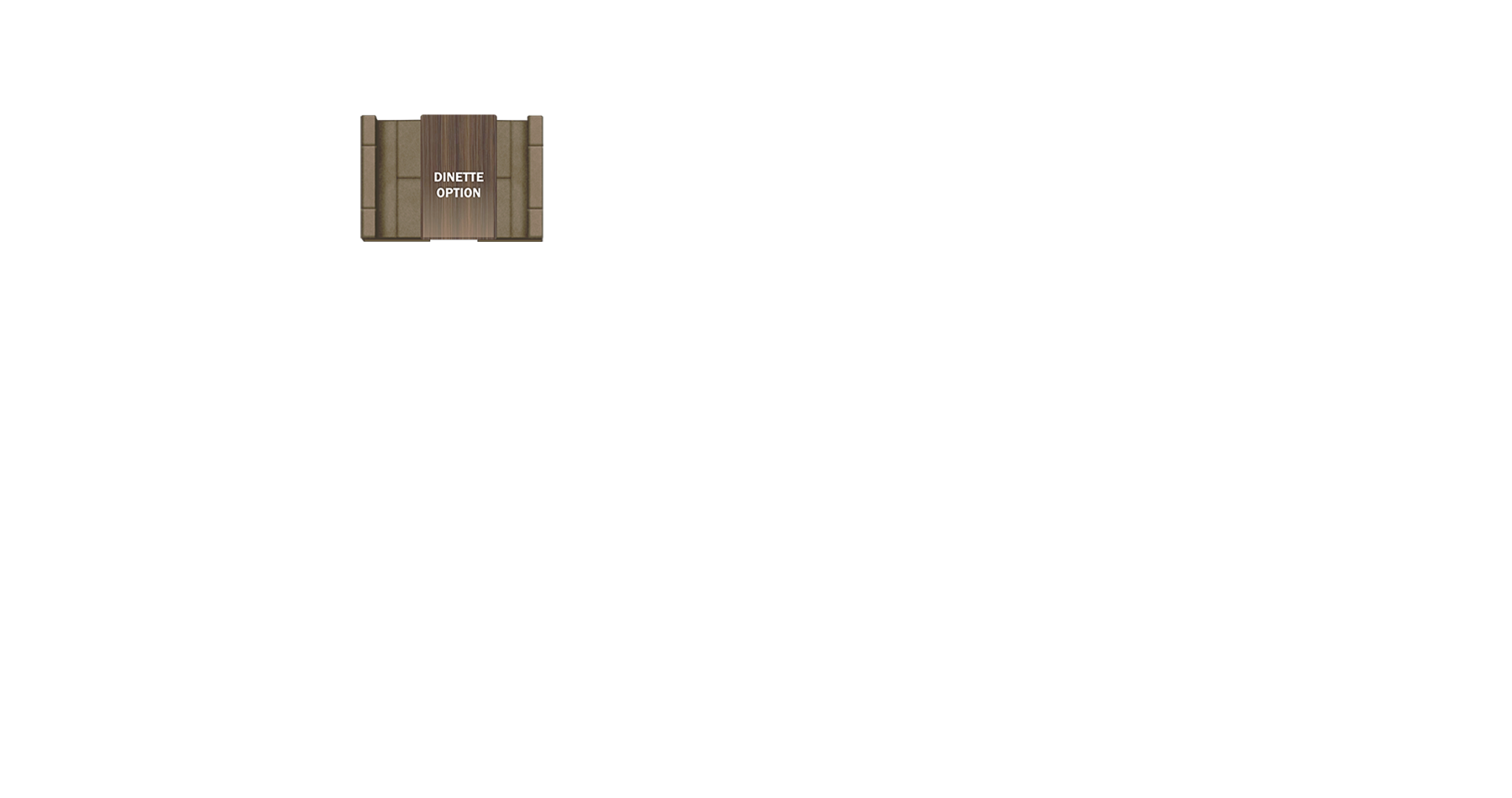

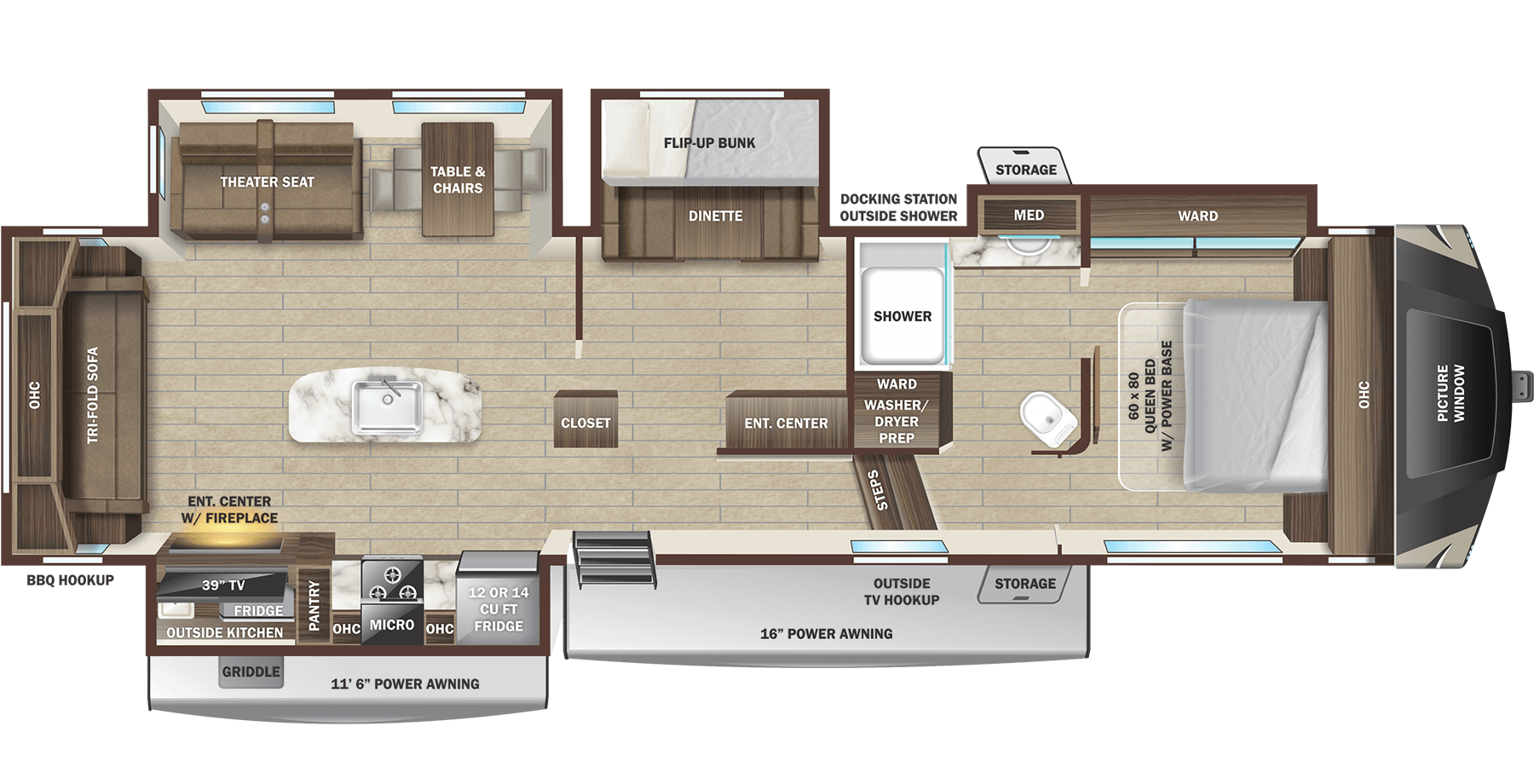

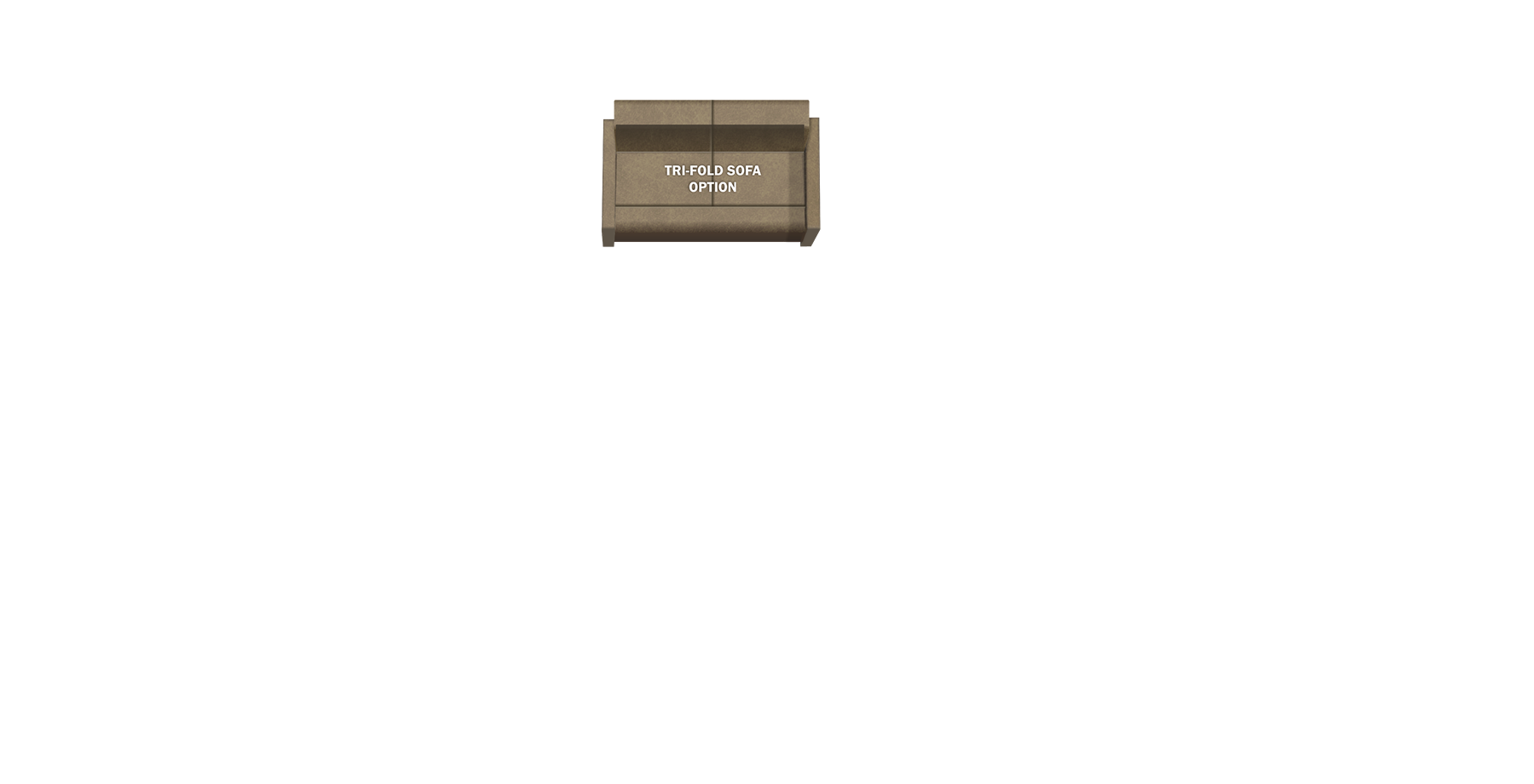

See Floorplan with
an Option Added:
See Floorplan with
Interior Design
Titanium
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,155 |
| Unloaded Vehicle Weight (lbs) | 11,210 |
| Cargo Carrying Capacity (lbs) | 2,290 |
| Gross Vehicle Weight Rating (lbs) | 13,500 |
Measurements
| Exterior Length (overall) | 39' 2" |
| Exterior Length (pin to bumper) | 38' 5" |
| Exterior Height | 12' 8" |
| Exterior Height (with A/C) | 13' 2" |
| Exterior Width | 8' 4" |
| Exterior Width (with slides out) | 13' 11" |
| Interior Height (main) | 8' 2" |
| Awning Length | 11' 0" |
| Awning Length 2 | 16' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 75.0 |
| Gray Water Capacity (gals) | 97.0 |
| Black Tank Capacity (gals) | 40.0 |
| Propane Unit (lbs) | 60 |
Miscellaneous
| Sleeps | up to 9 |
| Water Heater | 6 |
| # of outside storage compartments | 2 |
| Tire Size | ST235/80R16'E' |
