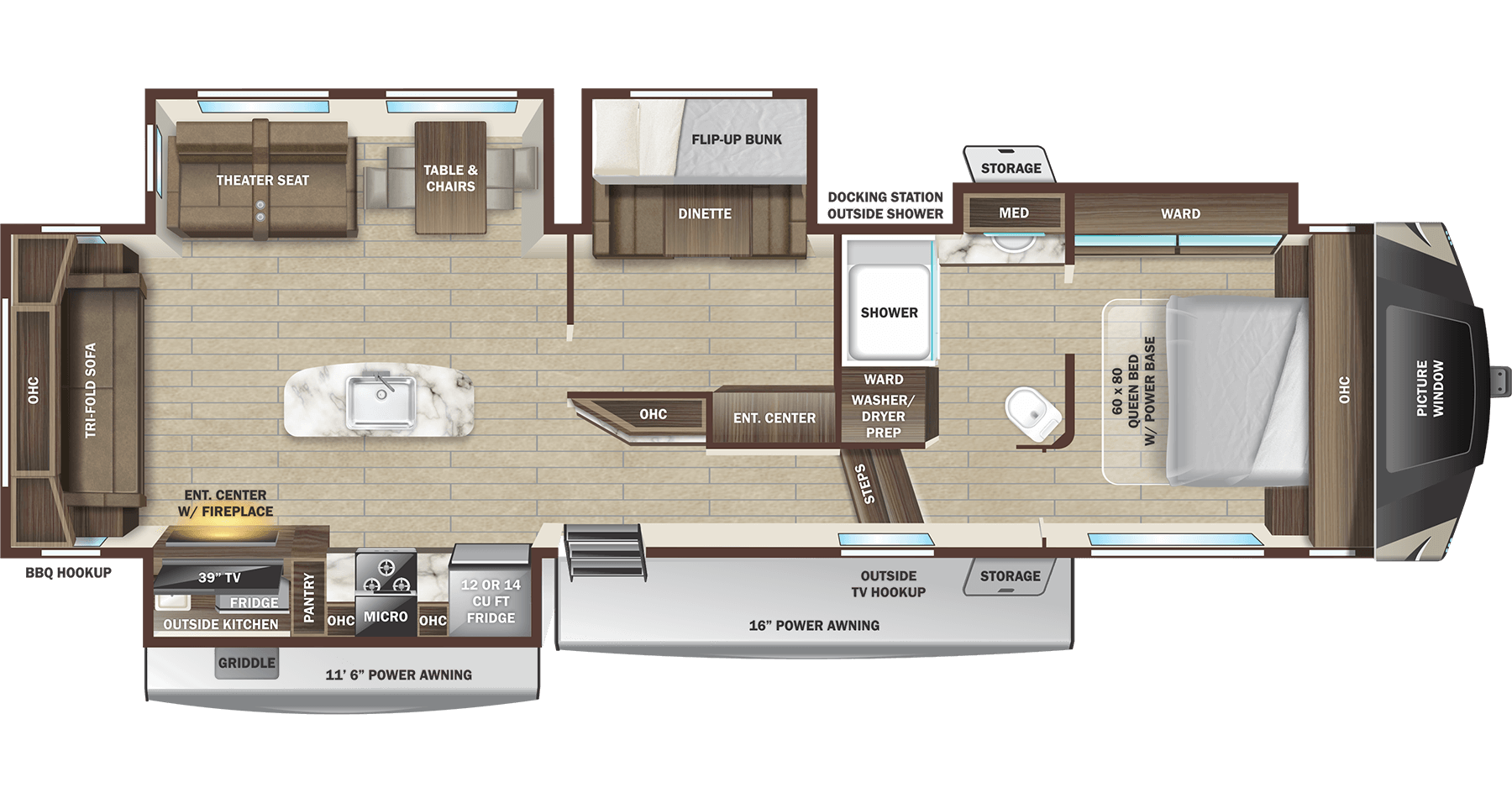

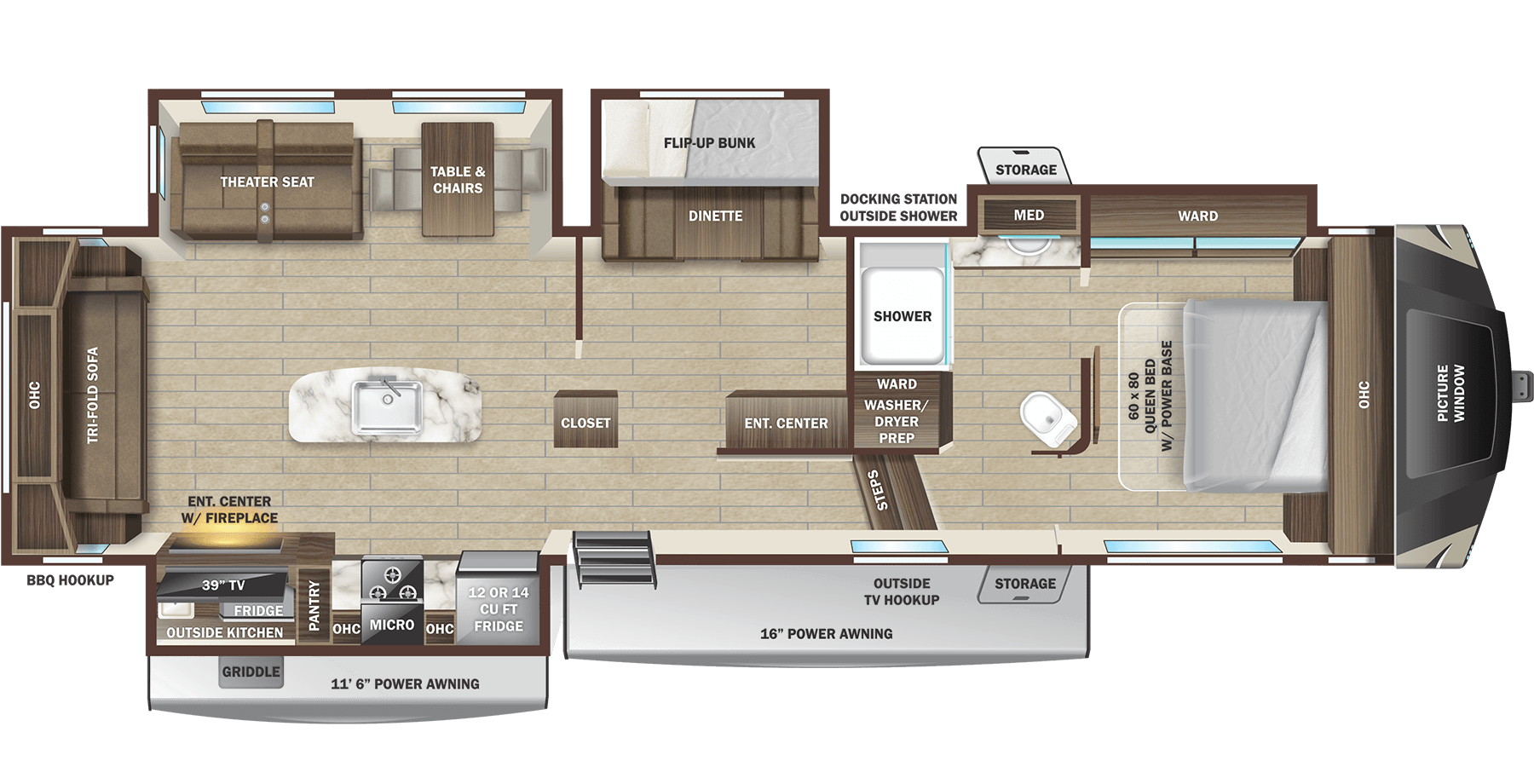

See Floorplan with
Interior Design
Boardwalk
Specifications
Weights
Dry Hitch Weight (lbs) | 2,155 |
Unloaded Vehicle Weight (lbs) | 11,210 |
Cargo Carrying Capacity (lbs) | 2,290 |
Gross Vehicle Weight Rating (lbs) | 13,500 |
Measurements
Exterior Length (overall) | 39' 2" |
Exterior Length (pin to bumper) | 38' 5" |
Exterior Height | 12' 8" |
Exterior Height (with A/C) | 12' 8" |
Exterior Width | 8' 4" |
Exterior Width (with slides out) | 13' 11" |
Interior Height (main) | 8' 2" |
Awning Length | 11' 0" |
Awning Length 2 | 16' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 75.0 |
Gray Water Capacity (gals) | 97.0 |
Black Tank Capacity (gals) | 40.0 |
Propane Unit (lbs) | 60 |
Miscellaneous
Sleeps | up to 9 |
Water Heater | 6 |
# of outside storage compartments | 2 |
Tire Size | ST235/80R16'E' |
